KR-A55ME
Drive method Bipolar constant current pentagon drive
Input power DC24V(DC20~35V)3A MAX
Rated current 0.5~1.5A/Phase(default 0.75A/Phase)
Resolution 1/1~1/250(16 types)
Max. response frequency 500Kpps or Less
Input voltage Photocoupler Input 0-8V
Function Pulse input method selection, Test mode
Full/Half step selection, Auto current down,
Run/Stop current setting,
Zero point excitation output signal(ZERO OUT)
Hold off function, Microstep resolution setting/selection
Ambient temp. 0~40°C(no freezing)
Ambient hum. 35~85%RH(at non-dew status)

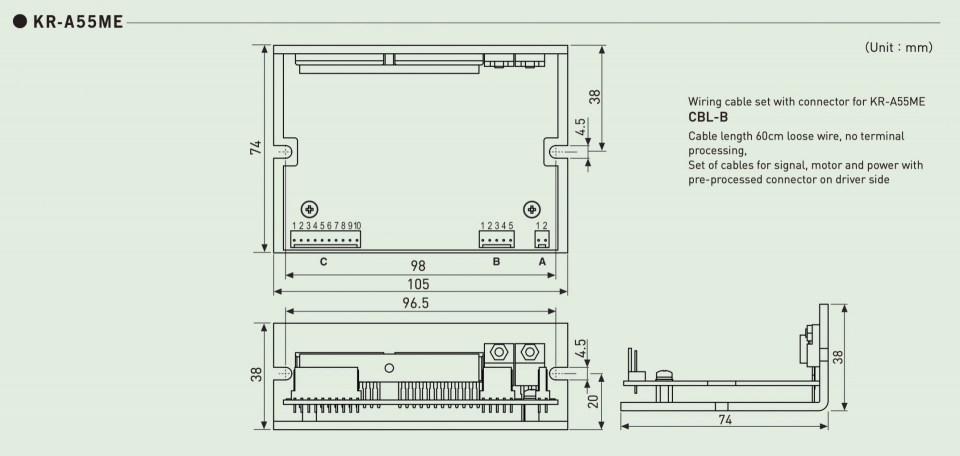

Dimensions W105×D74×H38(mm)
Weight Approx. 180g

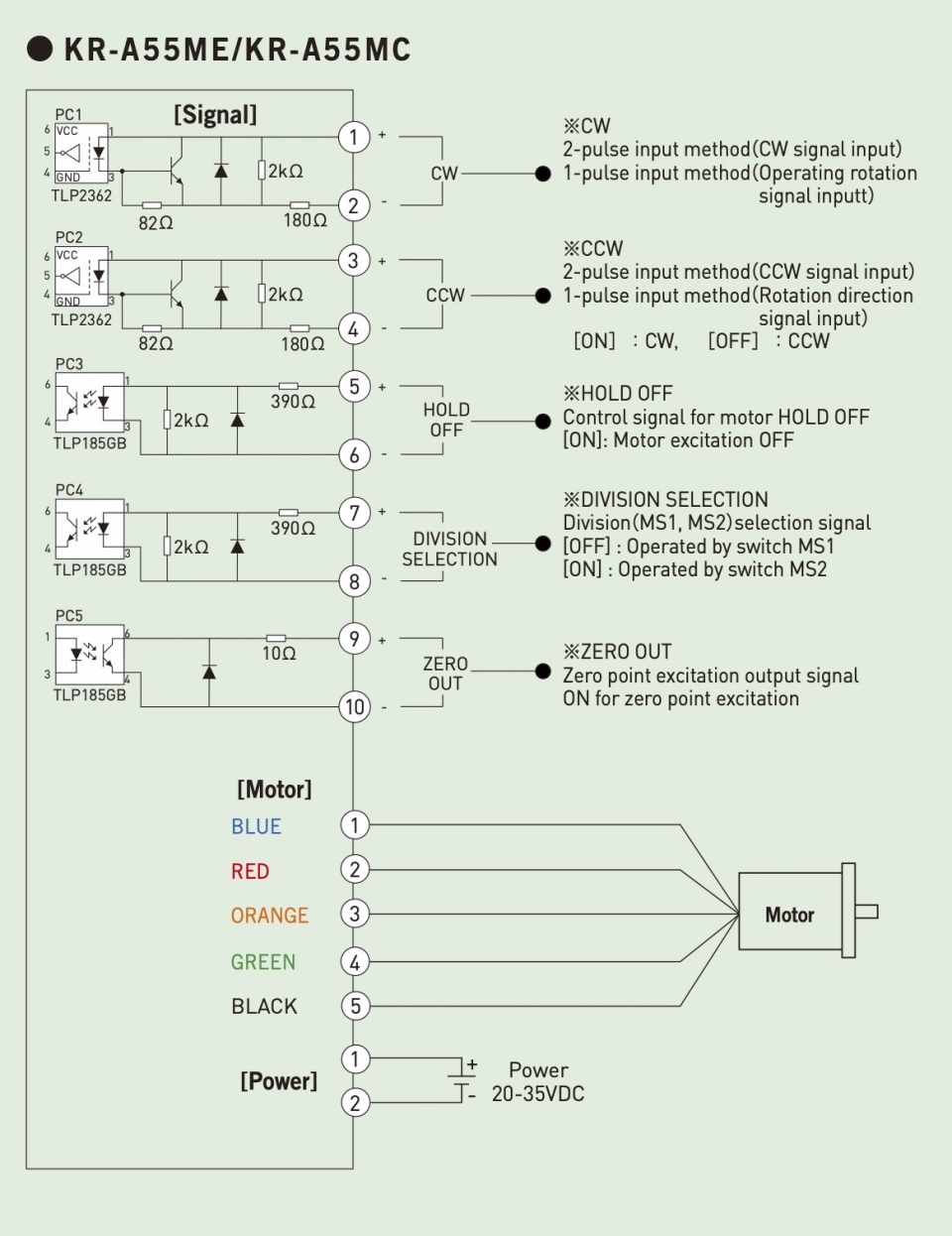

Attached parts（MOLEX compatible）
Connector housing
CN1 SIGNAL 10pin : Part No.5051-10 1pcs
CN2 MOTOR 5pin : Part No.5051-05 1pcs
CN3 POWER 2pin : Part No.5051-02 1pcs
Contact pin
Part 5159TL 17pcs
